Pairwise Analysis

This guide covers computing pairwise similarity between neurons, visualizing the relationship between firing-rate correlation and spike timing, and building spatial network representations of functional connectivity on the MEA layout.

After working through this guide you will know how to:

  • Compute spike time tiling coefficient (STTC) matrices with spike_time_tilings().

  • Compare firing-rate correlation and STTC with scatter plots using marginal histograms.

  • Convert a PairwiseCompMatrix to a NetworkX graph for graph analyses.

  • Plot functional connectivity as a spatial network on MEA electrode positions.

Spike Time Tiling Coefficient (STTC)

The STTC (Cutts & Eglen 2014) quantifies the temporal co-occurrence of spikes between two neurons. It ranges from -1 (anti-correlated) to +1 (perfectly coincident) and is unbiased with respect to firing rate, making it preferable to raw cross-correlation for comparing pairs with different activity levels.

  • Cutts, C. S. & Eglen, S. J. Detecting pairwise correlations in spike trains: an objective comparison of methods and application to the study of retinal waves. J Neurosci 34, 14288–14303 (2014).

The delt parameter sets the coincidence window in milliseconds. A spike in neuron A is considered coincident with neuron B if any spike of B falls within delt ms. Typical values range from 5 to 50 ms; 20 ms is a common default for cortical data.

from spikelab import SpikeData, PairwiseCompMatrix

# sd is a SpikeData with N units
# delt: coincidence window in ms (default 20 ms)
sttc_matrix = sd.spike_time_tilings(delt=20.0)

# sttc_matrix is a PairwiseCompMatrix with shape (N, N)
print(sttc_matrix.matrix.shape)   # (N, N)
print(sttc_matrix.metadata)       # {'delt': 20.0}

The returned PairwiseCompMatrix stores the symmetric N-by-N matrix together with optional labels and metadata. When numba is installed and the number of units exceeds two, the computation is automatically parallelized across all unit pairs.

To compare multiple conditions, compute one STTC matrix per recording and visualize them side by side:

import matplotlib.pyplot as plt
from spikelab.spikedata.plot_utils import plot_heatmap

fig, axes = plt.subplots(1, 2, figsize=(10, 4))

plot_heatmap(
    sttc_d0.matrix,
    ax=axes[0],
    cmap="RdBu_r",
    vmin=-1, vmax=1,
    xlabel="Unit", ylabel="Unit",
    colorbar_label="STTC",
)
axes[0].set_title("Baseline")

plot_heatmap(
    sttc_d50.matrix,
    ax=axes[1],
    cmap="RdBu_r",
    vmin=-1, vmax=1,
    xlabel="Unit", ylabel="Unit",
    colorbar_label="STTC",
)
axes[1].set_title("Treated")

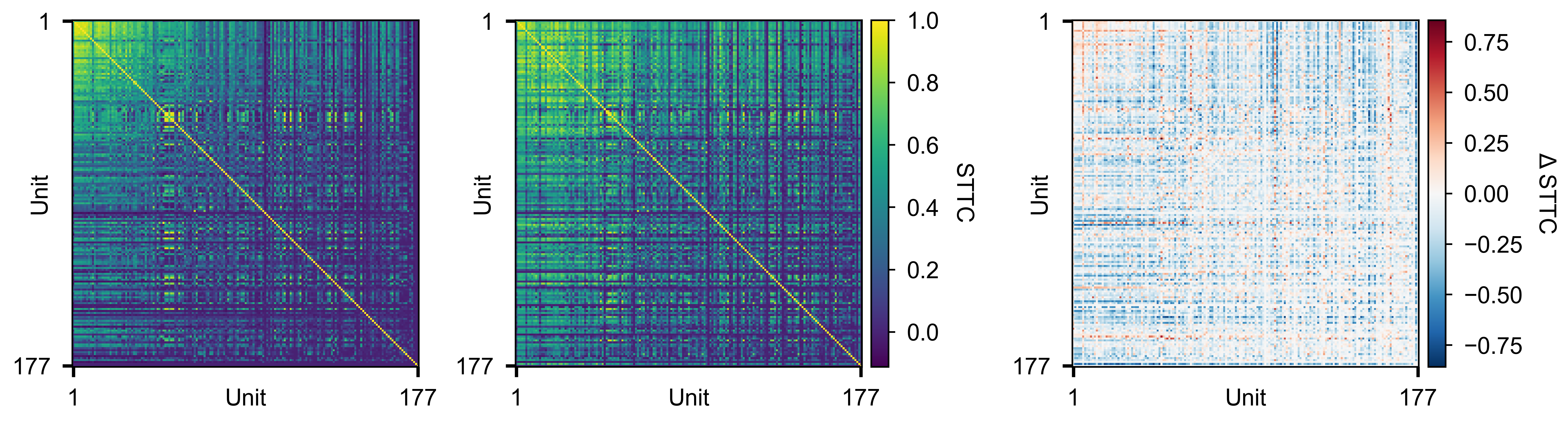

STTC matrices for baseline and treated conditions

Pairwise STTC matrices for two conditions (left, middle) and their difference (right).

Firing-Rate Correlations

Firing-rate correlation measures how similarly pairs of units modulate their activity over time. See Instantaneous Firing Rates for how to compute the instantaneous rate traces.

get_pairwise_fr_corr() computes the peak cross-correlation between every pair of units’ rate traces:

corr_matrix, lag_matrix = rd.get_pairwise_fr_corr(
    max_lag=10,    # maximum lag offset to search (in time bins)
    n_jobs=-1,     # parallel threads (-1 = all cores)
)

Both return values are PairwiseCompMatrix objects wrapping an (N, N) NumPy array:

  • corr_matrix — peak cross-correlation coefficient for each pair. The diagonal is always 1 (self-correlation).

  • lag_matrix — lag (in bins) at which the peak correlation occurs. The diagonal is always 0 (self-lag).

You can extract the lower triangle for summary statistics:

# 1-D array of all unique pairwise correlations
corr_values = corr_matrix.extract_lower_triangle()

print(f"Median pairwise correlation: {np.median(corr_values):.3f}")

Visualise the full (N, N) correlation matrix as a heatmap:

from spikelab.spikedata.plot_utils import plot_heatmap

fig, ax = plot_heatmap(
    corr_matrix.matrix,
    vmin=-1,
    vmax=1,
    cmap="RdBu_r",
    xlabel="Unit",
    ylabel="Unit",
    cbar_label="Correlation",
)

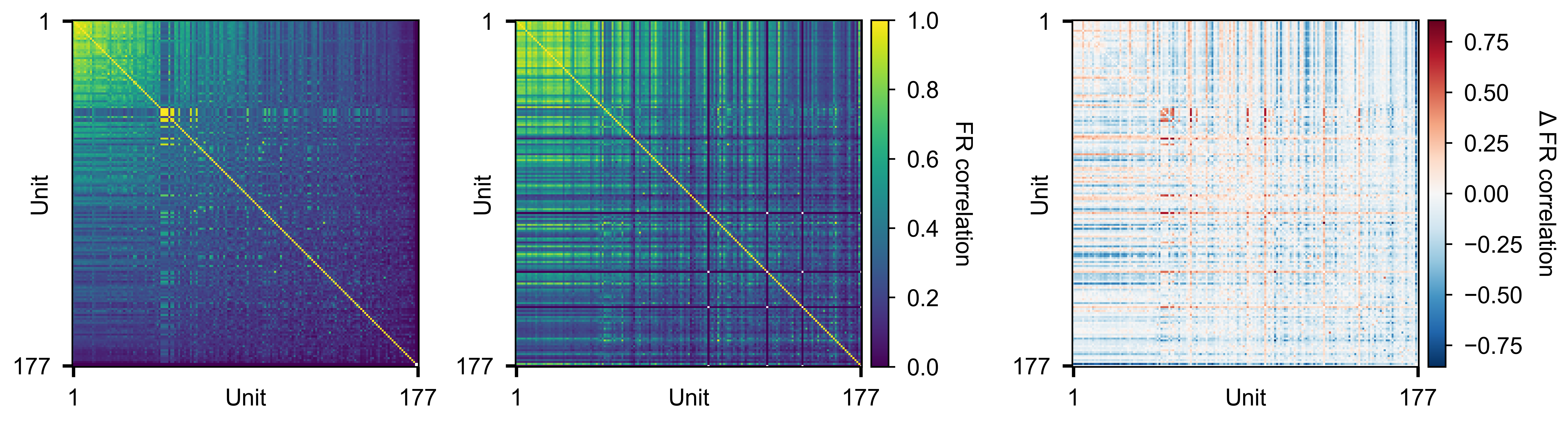

Firing-rate correlation matrices

Pairwise firing-rate correlation matrices for two conditions (left, middle) and their difference (right).

To compare distributions across conditions:

from spikelab.spikedata.plot_utils import plot_distribution
import matplotlib.pyplot as plt

fig, ax = plt.subplots(figsize=(6, 4))
plot_distribution(
    ax,
    metric_data={
        "D0": corr_d0.extract_lower_triangle(),
        "D3": corr_d3.extract_lower_triangle(),
        "D10": corr_d10.extract_lower_triangle(),
        "D30": corr_d30.extract_lower_triangle(),
        "D50": corr_d50.extract_lower_triangle(),
    },
    ylabel="FR correlation",
    show_violin=True,
    show_box=True,
)

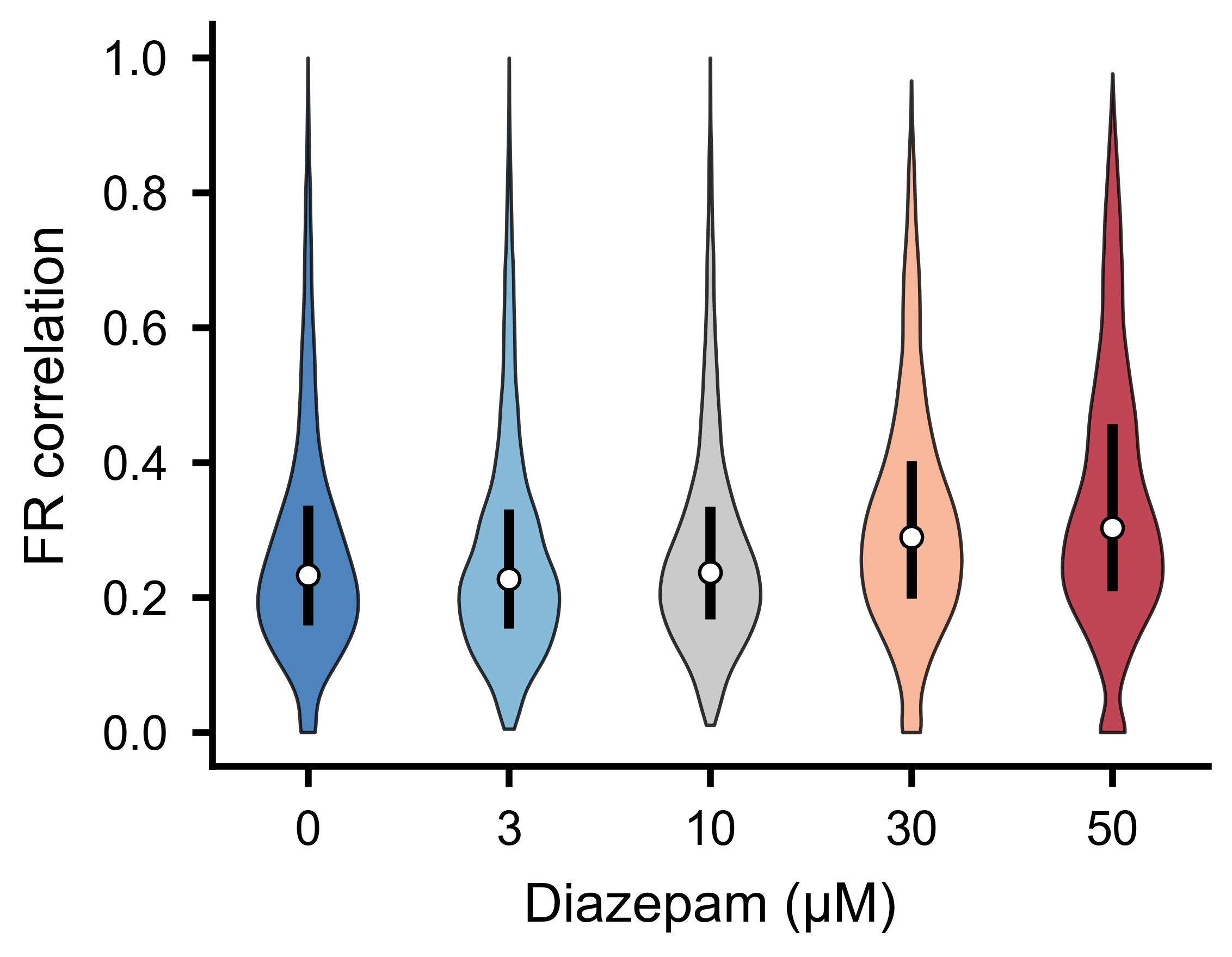

Violin plots of pairwise FR correlations across conditions

Distribution of pairwise firing-rate correlations for the different experimental conditions. Shifts in the median or spread indicate changes in functional network connectivity.

FR Correlation vs STTC Scatter

Firing-rate correlation and STTC capture different aspects of functional connectivity. You can plot one against the other to see how they compare.

Use plot_scatter_with_marginals() to create a scatter plot with marginal histograms. The function accepts a GridSpec slot and a parent figure, so you can embed multiple panels in a single layout:

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec
from spikelab.spikedata.plot_utils import plot_scatter_with_marginals

# Extract upper-triangle values from each matrix
mask = np.triu(np.ones(sttc_matrix.matrix.shape, dtype=bool), k=1)
x = fr_corr_matrix.matrix[mask]   # firing-rate correlation per pair
y = sttc_matrix.matrix[mask]      # STTC per pair

# Remove NaN pairs
valid = np.isfinite(x) & np.isfinite(y)
x, y = x[valid], y[valid]

fig = plt.figure(figsize=(5, 5))
gs = gridspec.GridSpec(1, 1, figure=fig)

ax_scatter, ax_histx, ax_histy, sc = plot_scatter_with_marginals(
    gs[0],                     # GridSpec slot for the sub-layout
    fig,
    x, y,
    xlabel="FR correlation",
    ylabel="STTC",
    color_vals="density",      # KDE-based density coloring
    cmap="viridis",
    marker_size=0.5,
    alpha=1.0,
    show_identity=True,        # draw x=y reference line
    show_colorbar=False,
)

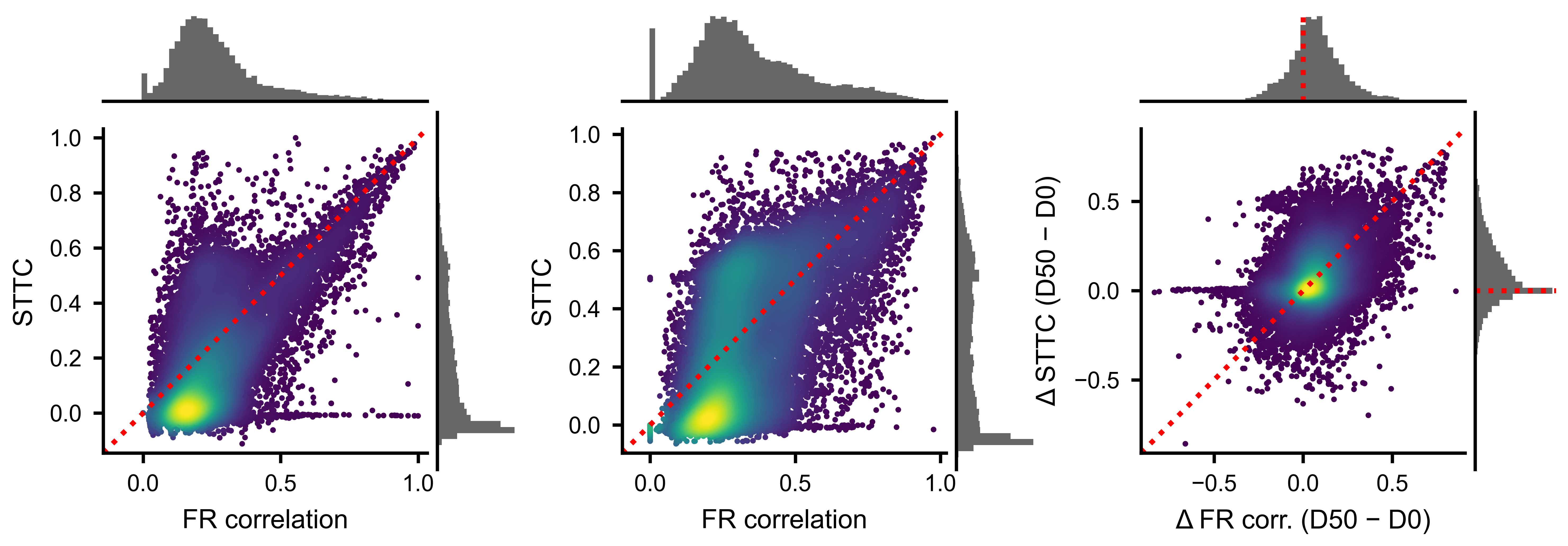

Scatter plot of firing-rate correlation vs STTC with marginal histograms

Each point is one unit pair. Density coloring highlights the core of the distribution. The identity line shows where the two metrics would agree perfectly.

Network Analysis

A PairwiseCompMatrix can be converted to a weighted NetworkX graph for standard graph-theoretic analyses such as clustering coefficient, shortest path length, and community detection.

import networkx as nx

# Convert to a NetworkX graph
# threshold: only include edges with |weight| > threshold
# invert_weights: if True, weight = 1 - value (useful for path-length metrics)
G = sttc_matrix.to_networkx(threshold=0.0, invert_weights=False)

print(f"Nodes: {G.number_of_nodes()}")
print(f"Edges: {G.number_of_edges()}")

For path-based metrics like global efficiency, use invert_weights=True so that strongly correlated pairs correspond to short paths:

G_inv = sttc_matrix.to_networkx(threshold=0.0, invert_weights=True)
efficiency = nx.global_efficiency(G_inv)
print(f"Global efficiency: {efficiency:.3f}")

Community detection with the Louvain algorithm identifies groups of neurons that are more densely connected to each other than to the rest of the network. This requires the python-louvain package (pip install python-louvain):

from community import community_louvain

# Build a graph with only positive edges (raw weights)
G_raw = sttc_matrix.to_networkx(threshold=0.0, invert_weights=False)

# Run Louvain community detection
# resolution: higher values produce more communities
partition = community_louvain.best_partition(G_raw, weight="weight", resolution=1.0)
modularity = community_louvain.modularity(partition, G_raw, weight="weight")

print(f"Modularity: {modularity:.3f}")
print(f"Number of communities: {len(set(partition.values()))}")

# partition is a dict mapping node index -> community label
community_labels = [partition[i] for i in range(G_raw.number_of_nodes())]

You can also compute per-node metrics such as weighted degree (strength), clustering coefficient, and betweenness centrality:

# Node strength (sum of edge weights per node)
strengths = np.array([d for _, d in G_raw.degree(weight="weight")])

# Weighted clustering coefficient
clustering = nx.clustering(G_raw, weight="weight")

Spatial Network Visualization

When electrode positions are available in neuron_attributes, you can overlay the pairwise connectivity on the physical MEA layout. The plot_spatial_network() method plots each unit at its (x, y) position with node size proportional to its mean pairwise metric and edges drawn between pairs that exceed a threshold.

import matplotlib.pyplot as plt

fig, ax = plt.subplots(figsize=(6, 6))

# sd must have neuron_attributes with 'x' and 'y' keys (positions in um)
sc = sd.plot_spatial_network(
    ax,
    sttc_matrix.matrix,          # (N, N) pairwise metric
    edge_threshold=0.3,          # draw edges where STTC > 0.3
    node_size_range=(2, 20),     # min/max marker size
    node_cmap="viridis",         # colormap for node color (by row-mean)
    edge_color="red",            # color of connecting lines
    edge_linewidth=0.6,
    edge_alpha_range=(0.15, 1.0),  # alpha scales with edge strength
    scale_bar_um=500,            # scale bar length in micrometers
)

fig.colorbar(sc, ax=ax, label="Mean STTC")

Alternatively, if you have positions as a separate array, call the plot_spatial_network() method on the matrix directly:

positions = sd.unit_locations   # (N, 2) array of (x, y) in um

sc = sttc_matrix.plot_spatial_network(
    ax,
    positions,
    edge_threshold=0.3,
    node_cmap="viridis",
    edge_color="red",
    scale_bar_um=500,
)

You can also use the top_pct parameter instead of edge_threshold to draw only the top percentile of edges, which is useful when the absolute scale varies across conditions:

sc = sd.plot_spatial_network(
    ax,
    sttc_matrix.matrix,
    top_pct=10,    # draw only the top 10% of edges
)

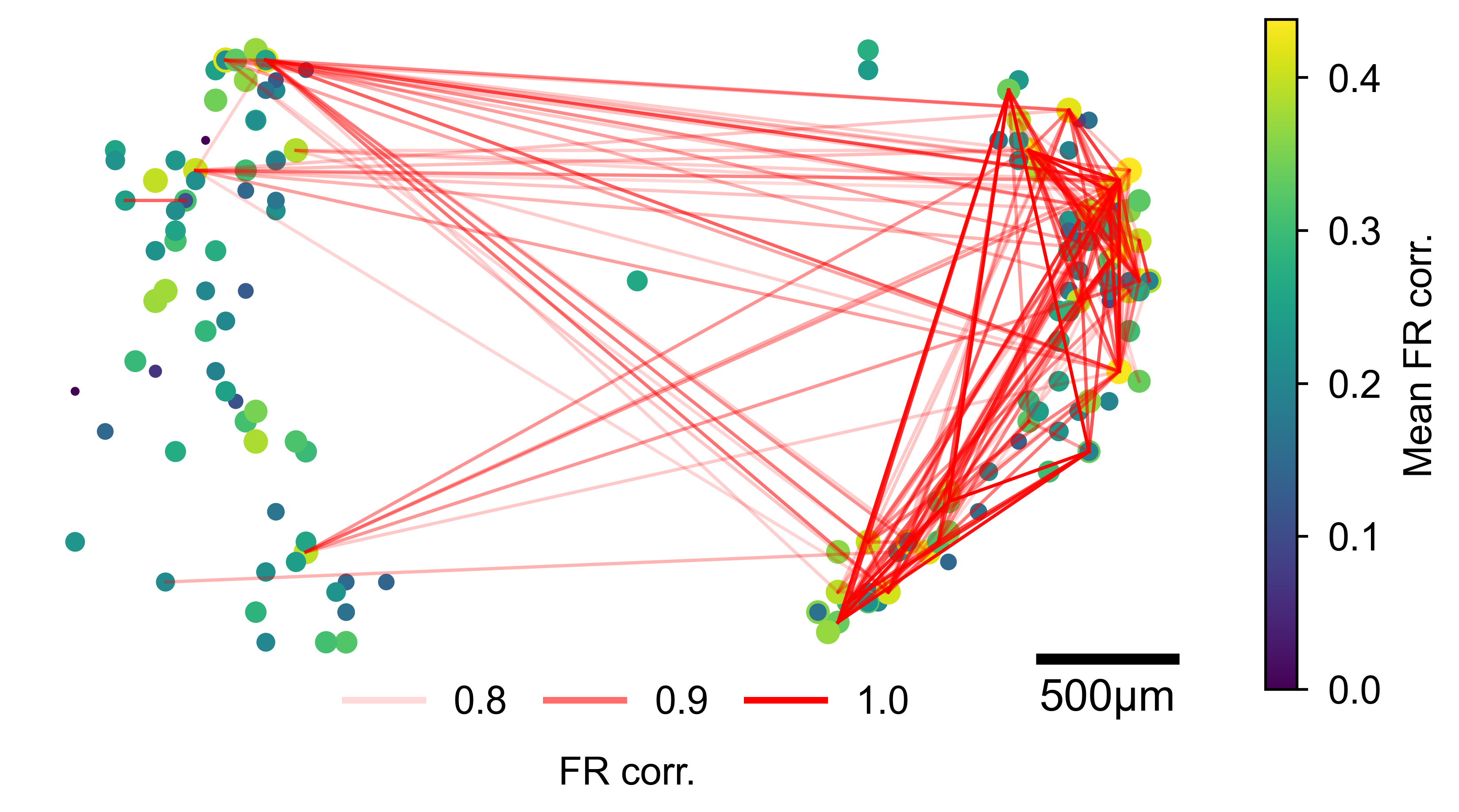

Spatial network of functional connectivity on the MEA layout

Units plotted at their MEA positions. Node size and color reflect mean pairwise connectivity; red lines connect pairs exceeding the threshold, with line opacity proportional to edge strength.
